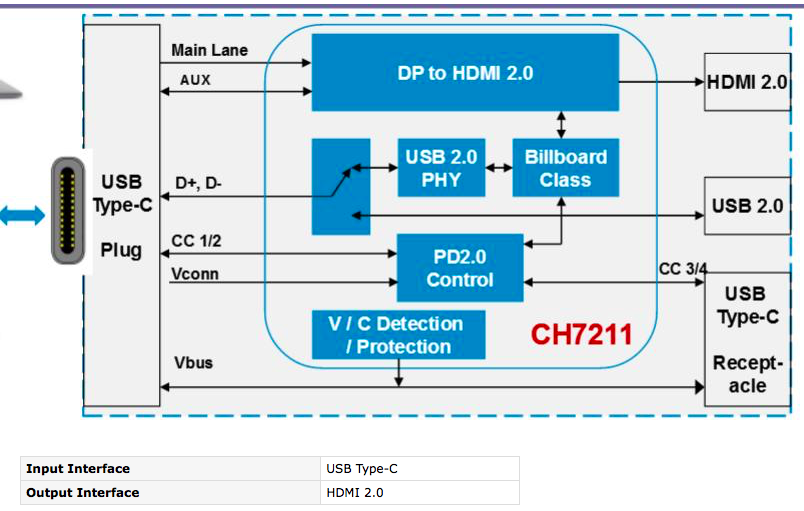

CH7211 - USB Type - C to HDMI 2.0 Converter


· Compliant with DisplayPort Alternate Mode on USB Type C standard

· Compliant with DisplayPort Specification version 1.3 and Embedded DisplayPort (eDP) Specification version 1.4

· Support up to 4 Main Link Lanes at 1.62Gbps,2.7Gbps (HBR) or 5.4Gbps (HBR2) link rate

· Automotive DP input signal detection and Lane swap supported for compliance with the USB type C cable plug orientation switch

· DP_BR signaling modes supported

· DisplayPort receiver auto equalization supported for the compensation of input signal attenuation

· Support Spread Spectrum Clocking (de-spreading) for EMI reduction

· Fast and full Link Training for embedded DisplayPort system

· Support eDP Authentication: Alternative Scramble Seed Reset and Alternative Framing

· USB Power Delivery control module supported with HPD to PD converter integrated

· HDMI transmitter compliant with HDMI specification version 2.0 and DVI specification version 1.0

· HDMI transmitter supports up to 6.0Gbps data rate for video timing of 4Kx2K@60Hz

· HDMI 3D dual view and 3D audio are supported

· RGB to YCC conversion and YCC 4:4:4/4:2:2 to YCC 4:2:0 are supported

· HDCP engine compliant with HDCP 2.2 specification with internal HDCP Keys

· HDCP 2.2 repeater supported

· Active DDC buffer and related control register integrated

· IIC-over-AUX transaction supported

· CEC tunneling over AUX is supported

· Programmable equalizer

· Programmable Pre-Emphasis on output driver supported

· On-chip Audio Decoder which support 8 channel Audio input from DP Rx and output from HDMI Tx with sample rate up to 192KHz

· SPDIF input supported with audio sampling rate up to 192KHz

· Embedded MCU to handle the control logic

· USB billboard module integrated

· USB 2.0 PHY supported with internal switch for data/file transport

· Support device boot up by loading firmware from On Chip Flash automatically, integrated EDID Buffer

· DP AUX channel and IIC slave interface are available for firmware update and debug

· Support Auto Power Saving mode and low stand-by current

· Anti-back drive support

· Low power architecture

· RoHS compliant and Halogen free package

· HBM 2KV ESD performance

· Offered in 64 pin QFN package
