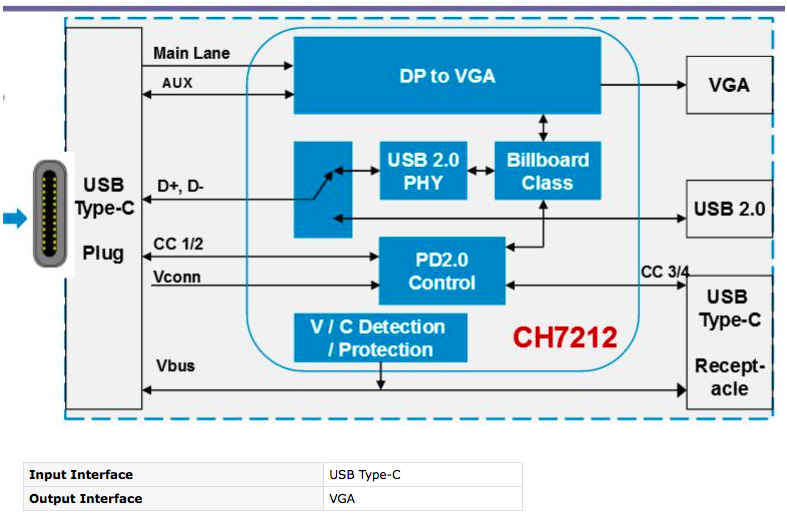

CH7212 - USB Type - C to VGA Converter

Features

· Compliant with DisplayPort Alternate Mode on USB Type C standard

· Compliant with DisplayPort Specification version 1.3 and Embedded DisplayPort (eDP) Specification version 1.4

· Support two link lane at 1.62Gbps,2.7Gbps (HBR) or 5.4Gbps (HBR2) link rate

· Automotive DP input signal detection

· DP_BR signaling modes supported

· Support Analog RGB output for VGA with Triple 9-bit DAC up to 240MHz pixel rate. Sync signals can be provided in separated or composite manner. Support VESA and CEA timing standards up to 2048x1536@60Hz with reduced blanking

· VGA output is compliant with VESA VSIS v1r2 specification

· DAC connection detection supported

· USB Power Delivery control module supported with HPD to PD converter integrated

· DisplayPort receiver auto equalization supported for the compensation of input signal attenuation

· Active DDC buffer and related control register integrated

· IIC-over-AUX transaction supported

· Single 3.3V power supply with regulator integrated

· Embedded MCU to handle the control logic

· USB billboard module integrated

· USB 2.0 PHY supported with internal switch for data/file transport

· Support device boot up by loading firmware from On Chip Flash automatically, integrated EDID Buffer

· MCCS bypass supported

· DP AUX channel and IIC slave interface are available for firmware update and debug

· Support Auto Power Saving mode and low stand-by current

· Anti-back drive support

· Low power architecture

· RoHS compliant and Halogen free package

· Offered in 48-Pin QFN package (6 x 6 mm)


CH7212
